Rural water supply
eZambuzane, Dutywa — 20 kL Sectional Steel Water Storage Tank
eZambuzane, near Dutywa (Idutywa), Eastern Cape
Client
Tyeks Plant Hire and Construction Pty Ltd
Capacity
21.79 kL (± 20 kL effective)
Tank type
Sectional HDG square panel tank, 3.66 × 2.44 × 2.44 m (3 × 2 × 2 panels)
Standards
SANS 10329
Project Overview
A 21.79 kL sectional hot-dip galvanised steel water storage tank installed at eZambuzane, a rural area near Dutywa, for main contractor Tyeks Plant Hire and Construction.
The Challenge
A rural water scheme at eZambuzane near Dutywa needed a compact, durable storage tank that could be transported to site in parts and built quickly on a fenced reservoir site.
Our Solution

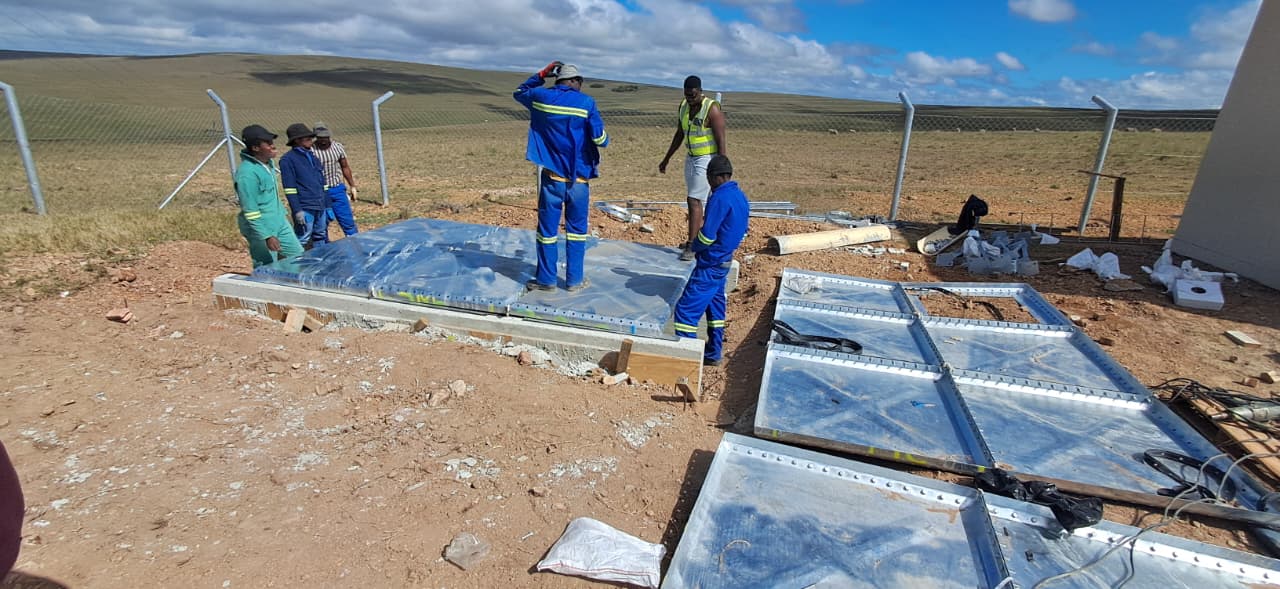

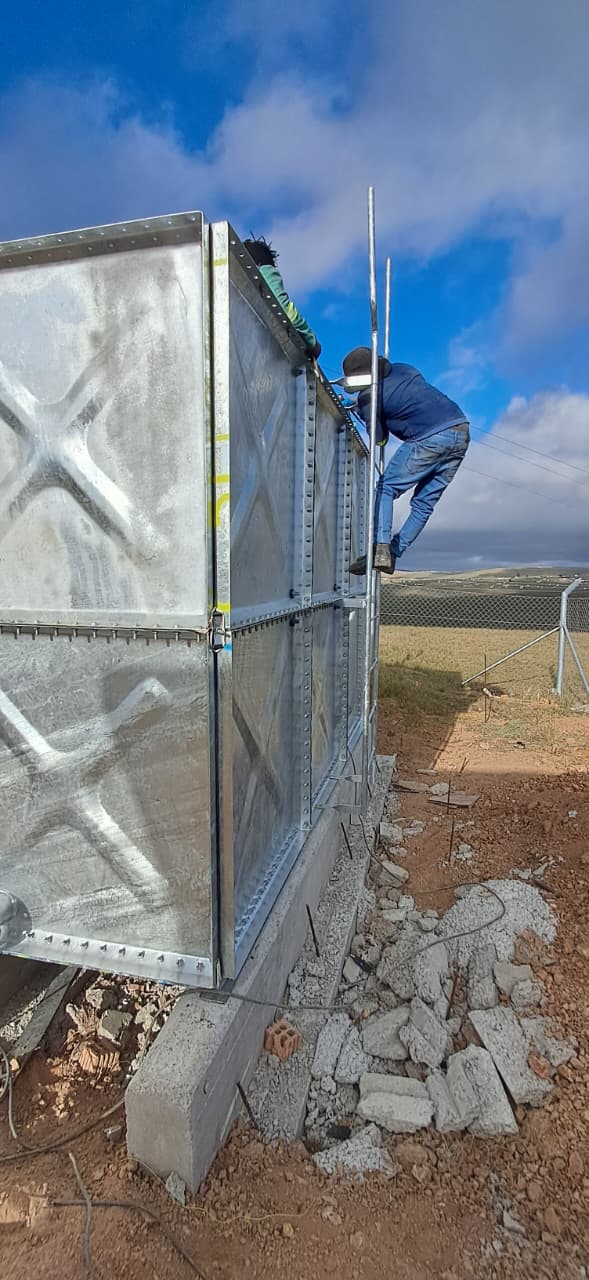

A sectional hot-dip galvanised tank measuring 3.66 m × 2.44 m × 2.44 m (3 × 2 × 2 panels) was delivered flat-packed and bolted together on a raised concrete plinth, then fitted with an access ladder and pipe connections.
Scope of Work
- Supply of sectional HDG steel panels
- Base panel installation on a concrete plinth
- Erection of wall and roof panels

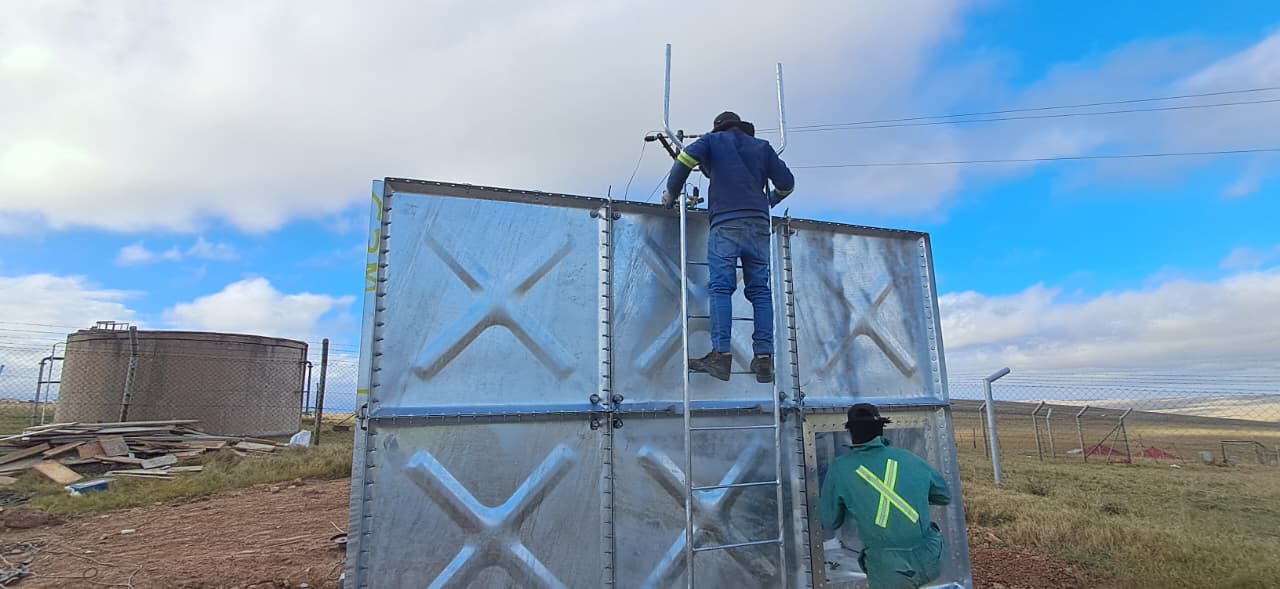

- Access ladder and fittings
- Inlet and outlet connections
The Result
The site now has around 20 kL of effective water storage, delivered for Tyeks Plant Hire and Construction as part of the local water supply works.
